Off Road Forward Folding Camper Trailer RC-CPT-01LL
Independent suspension with dual shocks
Powder coated or Enamel baking
Forward Folding Camper Trailer RC-CPT-01LL(Large Luxury)
Shipping quantity of RC-CPT-01LL
1x40’HQ container load 6 sets trailers with tents;
Trailer surface finish
Standard surface treatment: Powder coated with aluminum checker plate top cover
Optional at extra costs: Enamel Baking surface finish with aluminum checker plate top cover
Trailer size and weight
Overall size of trailer: 5305*2100*1445mm (L*W*H)
8*6Ft, Trailer box outer size: 2610*1960*885mm (L*W*H)
Ground clearance height: 560mm
Trailer tare mass: 1400kg
Trailer body construction and materials

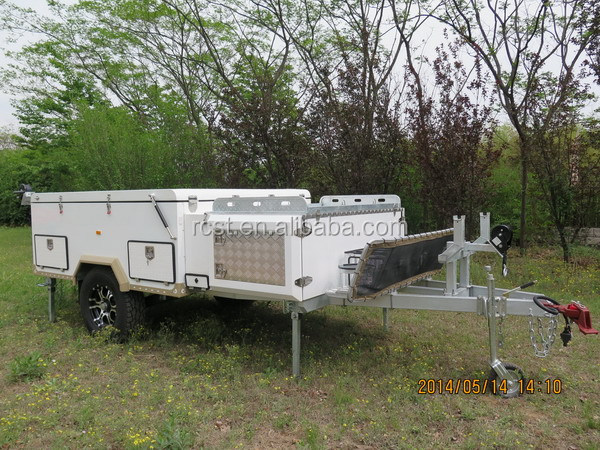

Heavy duty one-piece drawbar & chassis
Drawbar tube size: 100mmx50mmx4mm
Chassis tube size: 100mmx50mmx4mm , 70mmx50mmx3mm
Trailer suspension and wheel
Suspension: Heavy duty independent suspension with dual shock absorbers.
12 inchelectric drum brakes + handbrake system.
Off road all terrain wheels:

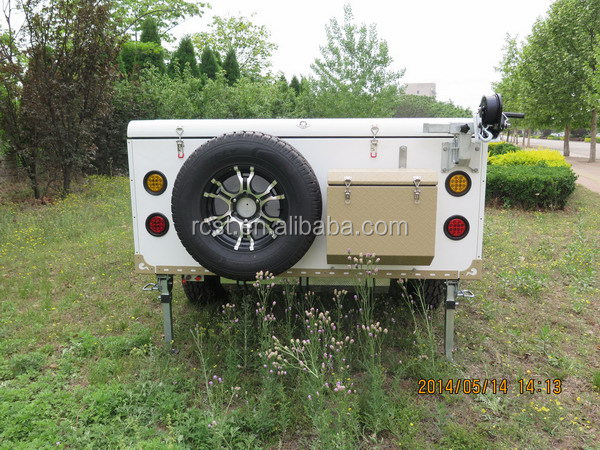

Standard: 3 brand new 265/70R16 tires (DOT certified) + 3 powder coated steel rims (off them, 1 spare wheel mounted at trailer rear)
Optional at extra costs: Wheels with alloy rims as shown by the pictures.
Trailer details & accessories
ü Safety chains: comply with Australian standard, with Australian standard markings
ü Coupling: 360 degree Treg poly block coupling, capacity: 2000kg, complies with Australian
standard, with Australian standard markings
ü With hand brake system
ü Jockey Wheel - swing up type with 10” heavy duty solid wheel.
ü Winches: Front winch: 1 self locking heavy duty hand winch in the front
Rear winch: 1 self locking heavy duty hand winch at trailer rear

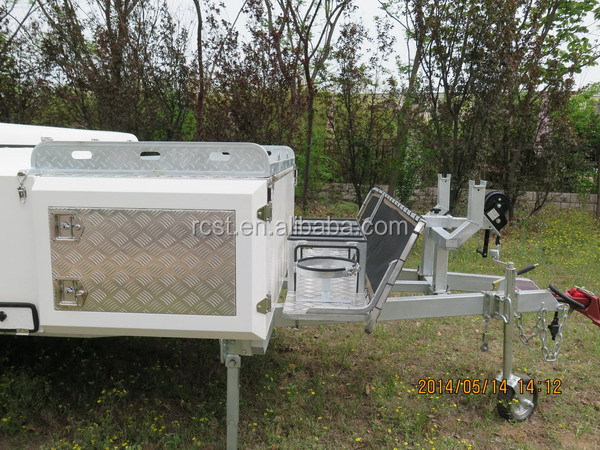

ü Large full trailer width UV resistance Nylon mesh stone guard bolted to holder brackets assembly
ü Holder brackets assembly: 2 x 4.5kg galvanized gas bottle holders and 4 x 20L galvanized jerry can holders.
ü Holder brackets sit on aluminum standard
Hot-dipped galvanized luggage rack on top of the large toolbox.
ü Large steel powder coated tool box, size: 1900*850*610mm, with 3 drawers in total.
ü Front of the tool box is covered by aluminum checker plate.
Sliding out fridge drawer in the left hand side of the large toolbox.
Fridge drawer (internal dimension): 852*740*88mm (L*W*H).
Maximum fridge dimension: 852*740*515 (L*W*H).
Fridge/s can be supplied at extra costs upon request.
Plus 2 large sliding out drawers in the right hand side of the toolbox.
ü Rear tool box: powder coated steel checker plate, size: 525*300*490mm (L*W*H).
ü Improved foldable steel checker plate footstep at the left hand side of the trailer.
ü 2*storage cabinets in the right hand side of the trailer box.
Storage cabinets are decorated with plywood board and lined with carpet.
Stainless steel water filler is fitted inside the rear cabinet on the right hand side of the trailer box
Battery and switch panel inside the front cabinet on the right hand side of the trailer box.
Battery can be supplied at extra costs upon request.
ü Pantry at the left hand side of the trailer: drawer size: 688*345*110mm(L*W*H)
ü Gas struts’ rating: 1600N
ü With 2 rear stabilizing legs and 2 front stabilizing legs plus stabilizer tool
ü With 4 round ADR approved LED tail lights (2 red and 2 orange)
ü With 2 clearance lights at left & right side of tool box
ü With 4 reflectors: 2 orange ones, 2 white ones
ü Number plate light and number plate Holder
ü Australia standard 7 pin plug, Anderson plug and standard 7-core wiring system
ü Fridge outlet inside large tool box
ü 1 switch panel
ü 12V outlets, total q’ty: 5 (off them, 2 near kitchen, 3 inside living room)
ü With bracket for battery
Switch: q’ty: 2

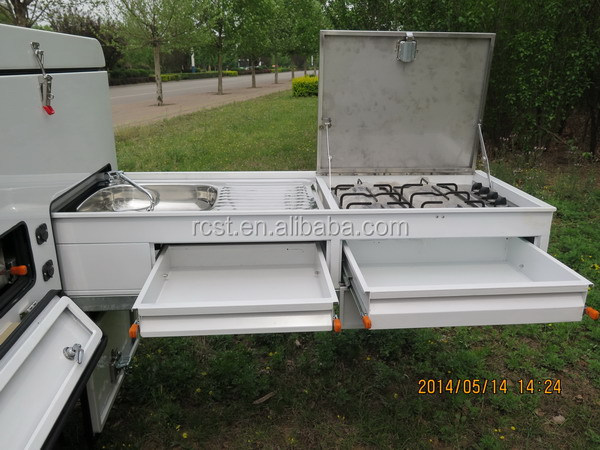

ü Luxury type sliding out kitchen at the left hand side of the trailer:
One double-sealed door to prevent water or dust coming inside the kitchen or trailer;
2 drawers; 1 stainless steel gas cooker cover;
With stainless steel sink and stainless steel tap.
Kitchen is stronger than competitors’ kitchen, a man can sit on the kitchen without any problem.
2*12V outlets near kitchen
Gas cooker is to be supplied at extra costs upon request.
Maximum gas cooker dimension: 580x500x78mm
ü 100L stainless steel water tank, size: 1000*600*180mm; 12V electric pump system.
Both water tank and electric pump are covered with Aluminum checker plate for better protection.
ü High quality stainless steel water filler is fitted inside the rear cabinet on the right hand side of the trailer box.
ü All doors on the trailer box are fully & double-sealed.
ü All runners are self-lockable runners
Inside the trailer

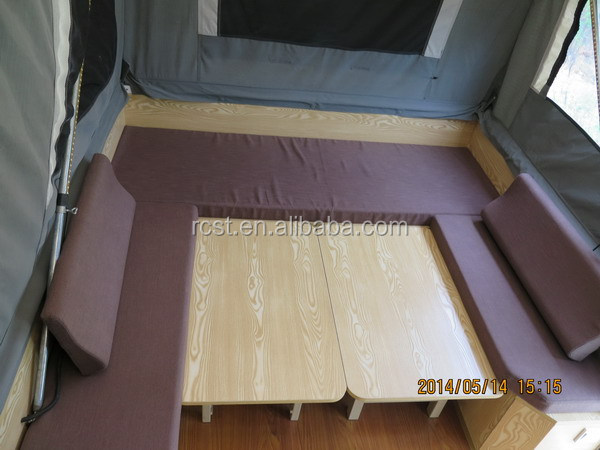

ü Living Room
Living room is fully covered with plywood board, including plywood walls, plywood floor, plywood cabinets, foldable plywood table.
Foldable plywood table has a food/dishware tray as well
3*12 outlets inside the living room
Foldable table and sofa inside the living room which could be converted into bed for sleeping.
Store drawers inside the living room.
ü Bed Room
Large King Size foam mattress inside the bed room.
Trailer top panel under the mattress is inserted with insulation board.

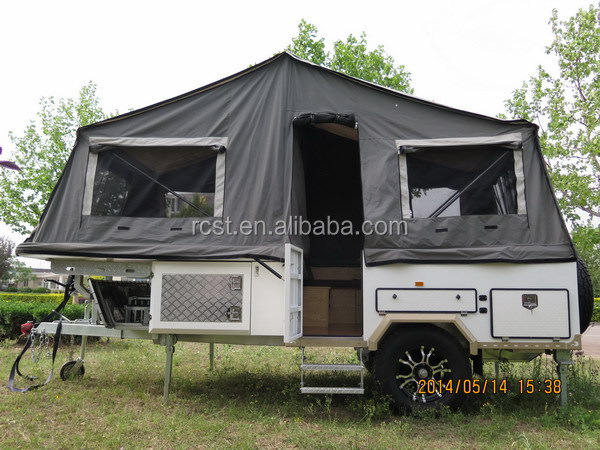

Tent: 15OZ tent with double roof.
With bed room+Living room+Sunroom/Annex as standard.
(Please check the specification sheet of the tent RC-DQF01 to see more details of the tent.)
