Quick Details

  • Use: Travel Trailer
  • OEM No.: RC-CPT-01SD
  • Max Payload: 2000KG
  • Size: 8*6FT
  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: Tangshan Rongcheng
  • Model Number: RC-CPT-01SD
  • design: off road design

Packaging & Delivery

Packaging Details Packed in pallets
Delivery Time Within 50-60 days after receiving the advance payment

Specifications

forward folding hard floor camper
strong chassis frames
full off road design

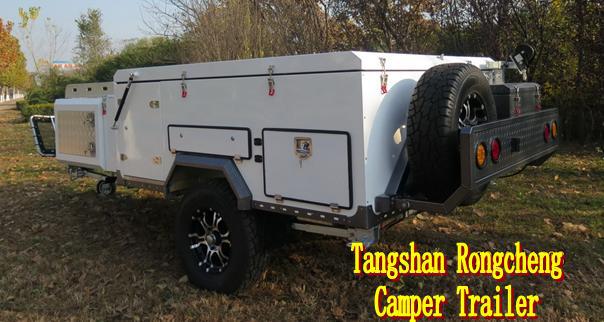

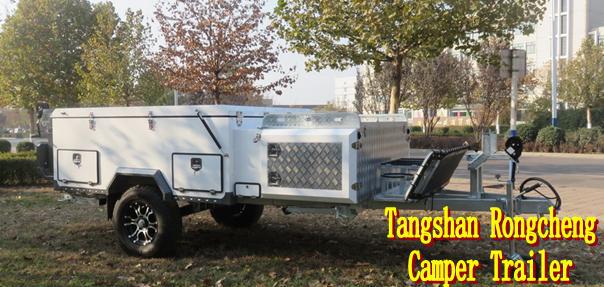

Forward Fold Camper Trailer RC-CPT-01SD (Super Deluxe)

LHS means Left Hand Side, RHS means Right Hand Side, SS means stainless steel



Shipping quantity of RC-CPT-01SD

6 sets trailers with tents in 1x40’HQ container



Trailer surface finish

Standard: aluminum checker plate cover for body top and front tool box

Standard surface treatment: Powder coated

Optional at extra costs: Enamel Baking finish



Trailer size and weight

Overall size: 5620*2100*1530mm (L*W*H)

Trailer box outer size (8*6Ft): 2610*1970*910mm (L*W*H)

Ground clearance height: 640mm

Trailer tare mass: 1760kg



Trailer body construction and materials

Heavy duty one-piece drawbar & chassis

Drawbar tube size: 100x50x4mm

Chassis tube size: 100x50x4mm, 70x50x3mm



Trailer suspension and wheel

Suspension: Heavy duty independent suspension with dual shock absorbers

12 inch electric drum brakes + handbrake system

Off road all terrain wheels:

Standard: 3X265/70R16 tires (DOT certified) + 3 steel rims

(off them, 1 spare wheel mounted at trailer rear)

Optional at extra costs: Wheels with alloy rims as shown by the pictures



Trailer details & accessories

1. Safety chains: Australian standard, with Australian standard markings

2. Coupling: 360 degree Treg poly block coupling, 2000kg, Australian standard, with Australian standard markings, with hand brake system

3. Jockey Wheel - swing up type with 10” heavy duty solid wheel

4. Heavy duty hand winches: 1 self locking front winch+ 1 self locking rear winch

5. Large full trailer width meshed stone guard bolted to holder brackets assembly

6. Galvanized holder brackets assembly sit on aluminum stand:

7.   2 x 4.5kg gas bottle holders + 4 x 20L jerry can holders

8. Hot-dipped galvanized luggage rack on top of the front toolbox.

9. Front powder coated steel tool box, size: 1900*860*610mm, with 3 drawers in total.

    Front tool box is covered by aluminum checker plate.

    Including: Sliding out fridge drawer+ 2 sliding out storage drawers

    Fridge drawer (internal size): 852*740*88mm (L*W*H).

    Maximum fridge size: 852*740*515 (L*W*H).

    Optional at extra costs: Fridge/s

10. Rear tool box: powder coated steel checker plate.

11. Foldable checker plate steel footstep at the LHS of the trailer.

12.   2*storage cabinets in the RHS of the trailer box.

      Storage cabinets are decorated with plywood board and lined with carpet.

      SS water filler is fitted inside the rear cabinet.

      Battery and switch panel inside the front cabinet on the RHS of the trailer body.

      Optional at extra costs: Battery

13. Room for tent poles’ storage

14. Pantry drawer size: 688*345*110mm(L*W*H)

15. Gas struts’ rating: 2400N

16. 4 stabilizing legs plus stabilizer tool: 2 rear+2 front

17. Steel bracket for spare wheel + Steel bracket for rear tool box

18. Rear steel bracket for tail lights, number plate light and number plate



Electric set-up

1. With 4 round ADR certified LED tail lights (2 red and 2 orange)

2. With 2 clearance lights at left & right side of tool box

3. With 4 reflectors: 2 orange ones, 2 white ones

4. Number plate light

5. Australia standard 7 pin plug, Anderson plug and standard 7-core wiring system

6. Fridge outlet inside front tool box + LED light bar for fridge

7. 1 switch panel

8. 12V outlets, total q’ty: 5 (2 near kitchen+3 inside living room)

9. With bracket for battery

10. Switch: q’ty: 2



Trailer kitchenette

1. Luxury type sliding out kitchen at the LHS of the trailer

    Double-sealed door, water/dust-proof

    2 powder coated steel drawers; 1 SS cover for gas cooker

    With SS sink and SS water tap

    Kitchen is stronger than competitors’ kitchen, a man can sit on the kitchen without any problem.

    2*12V outlets near kitchen

    Optional at extra costs: Gas cooker

    Maximum gas cooker dimension: 580x500x78mm

    Optional at extra costs: SS kitchen and 2xSS drawers.

2.  100L SS water tank; 12V electric pump.

     Water tank and electric pump are covered with Aluminum checker plate.

3.  High quality SS water filler is fitted inside the rear cabinet on the RHS of the trailer body.



Inside the trailer

1. Living Room

Living room is fully covered with plywood board, including plywood walls, plywood floor, plywood cabinets, foldable plywood table.

Foldable plywood table has a food/dishware tray as well

3*12 outlets inside the living room

Foldable table and sofa inside the living room are converted into bed for night.

Storage drawers inside the living room.

2. Bed Room

King Size foam mattress

Trailer top lid is inserted with insulation board.



Tent: 15OZ tent with double roof.

With bed room+Living room+Sunroom/Annex as standard.



Attention

1. All hinges, latches, fasteners that we use on the trailers are made of stainless steel.

2. The trailer is fully sealed, all doors and openings are fully sealed with rubber seals.

3. All doors on the trailer box are fully & double-sealed.

4. All runners are self-lockable runners.

5. Trailers can be built as per customer’s special requirements.
