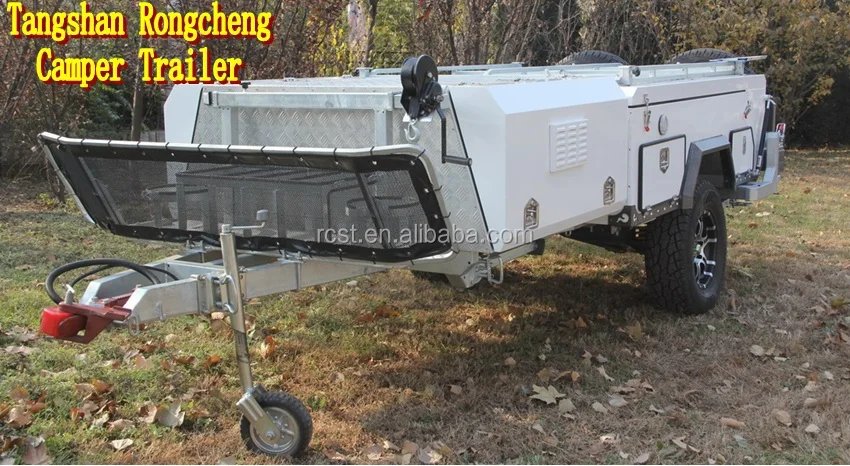

Hard floor camper trailer model RC-CPT-04SD
LHS means LHS, RHS means RHS, SS means stainless steel
Shipping quantity of RC-CPT-04SD:
6 sets trailers with tents in 1x40’HQ container;
Trailer surface finish: hammer tone powder coated
Aluminum checker plate cover for trailer body top and front tool box
Optional at extra costs: Enamel Baked finish
Trailer size and weight
Overall dimension: 5250X1990X1480mm (LXWXH)
Trailer outer box size (7*6Ft): 2205X1750X640mm (LXWXH)
Ground clearance: 650mm
Trailer tare mass: 1400kg
Trailer draw bar and chassis
Heavy duty one-piece drawbar & chassis hot-dipped galvanized
Drawbar: 100X50X3mm, fully welded to chassis
Off road chassis: 70x50x3mm
Draw bar & trailer frames welded onto chassis, then hot-dipped galvanized, best rust-resistance.
Trailer body construction and materials
Box panel walls: 1.2mm thick cold-pressed flat steel plate
Box inner walls & floor under tent bed: 1.2mm thick galvanized flat steel plate, covered by marine carpet.
Trailer body top: aluminum checker plate cover.
Trailer lid is inserted with insulation board.
Trailer floor in living room: plywood floor.
Trailer suspension and wheel
Independent suspension with dual shock absorbers (All the blue bushes used for independent suspension are made of imported materials)
12” electric brakes with hand braking system
Off road all terrain wheels: 4x265/70R16 wheels, powder coated steel rims and 265/70R16 tires (DOT certified), 6-stud pattern, including 2x Spare wheel.
Optional at extra costs: Wheels with alloy rims as shown by the pictures.
Trailer details & accessories
Safety chains: hot-dipped galvanized, Australian standard, with Australian standard markings
Hitch: Treg poly block hitch, 2000KG, Australian standard, with Australian standard markings
Jockey wheel: swing up type with 10” solid wheel
Winch: PP webbing 8m long, capacity: 1000KG, plus heavy duty winch support
Meshed stone guard: hot-dipped galvanized
Hot-dipped galvanized gas bottle holders: 2X4.5Kg
Hot-dipped galvanized jerry can holders: 4X20L
Large powder coated steel tool box, size: 1730X1180X620mm (LXWXH)
Including: 1Xsliding out drawer for fridge in the LHS of the toolbox
Maximum fridge size: 770*560*420 (LXWXH)
3Xsliding out storage drawers in the LHS of the large toolbox
3Xsliding out storage drawers in the RHS of the large toolbox
Optional at extra costs: Fridge/s & battery.
Gas struts: gas struts for lifting up bed;
extra heavy duty gas struts for folding trailer body lid.
Locks and keys: all access doors are with SS locks, water/dust proof seals for all doors
Storage compartments with fully sealed & lockable doors on LHS & RHS of the rear part of trailer body, for easy storage of camping stuff
4X wind down stabilizer legs & adjusting spanner
3Xbrackets for batteries under bed
1X hot-dipped galvanized luggage rack on top of the trailer body
1Xpowder coated steel drawer with a divider under bed
Powder coated steel bracket for double spare wheels
Powder coated steel bracket for LED tail lights, number plate light and number plate
SS water tank: 90L, size: 1000X520X180mm (LXWXH), with aluminum checker plate cover.
12V Electric water pump for water tank, with aluminum checker plate cover.
High quality SS water filler inside the side storage at RHS of the trailer.
Control panel is at RHS of the tool box

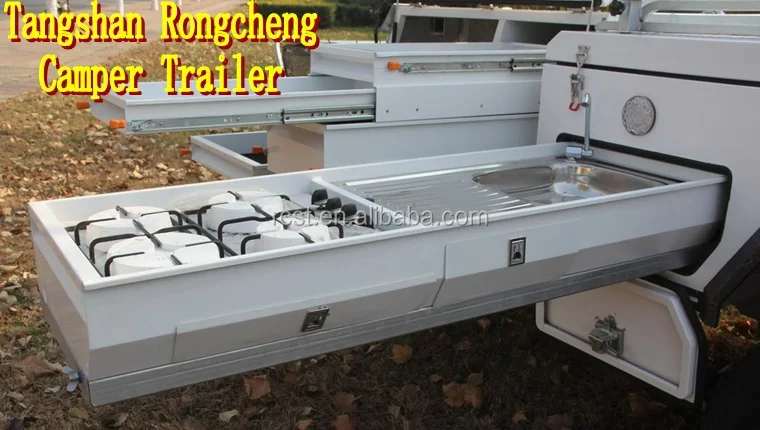

Kitchen: kitchen top + SS kitchen sink + 2Xdrawers, high quality lockable runners, SS lock
Optional at extra costs: SS kitchen with 2XSS drawers
Trailer electric set-up
Wiring harness under trailer concealed in steel conduit
Wire cable: standard 7-core wire cable
4XLED tail Lights, 1Xnumber plate light
1X7-pin plug: flat or round plugs available for choice
Anderson plug & wiring
2Xclearance lights on front of the tool box
2X light bars inside tent and switch.
1XCooking lamp and Cooking lamp switch
2X12V outlets under tent bed
Jerry cans, Gas stove/ burners can be supplied at extra cost
Gas bottles are not supplied
1.All hinges, latches, fasteners that we use on the trailers are made of stainless steel
2.The trailer is fully sealed, all doors and openings are fully sealed with rubber seals
3.Trailers can be built as per customer’s special requirements
Tent: 14OZ camper trailer tent with double roof.
