Rear folding camper trailer RC-CPT-04L

FOB Reference Price:Get Latest Price
6 Set/Sets 6 SETS IN ONE 40'HQ CONTAINER (Min. Order)
Report Suspicious Activity
Quick Details
Travel Trailer
OEM No.:
Max Payload:
7X6FT, 7*6FT
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Model Number:
slide out type
enamel baked finish
Large size
Tent annex:
extra large off road hard floor camper trailer
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packed in carton boxes, or packed in bulk, or packed in iron pallets as per the nature and requirements of the customers
Xingang Port China
Lead Time :
within 50-60 days after receiving the relevant deposit


Rear folding camper trailer RC-CPT-04L
1. Fully off road design
2. Large toolbox for fridge

Heavy Duty Hard Floor Rear Folding Camper RC-CPT-04L

Standard trailer




Shipping quantity of RC-CPT-04L

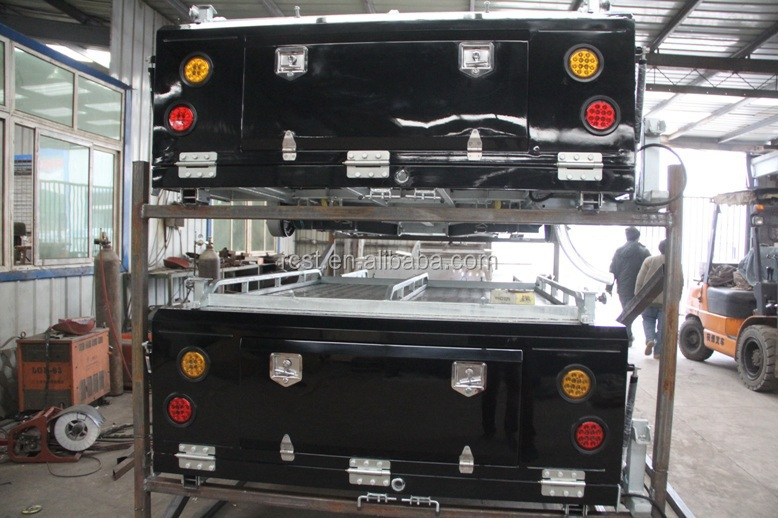

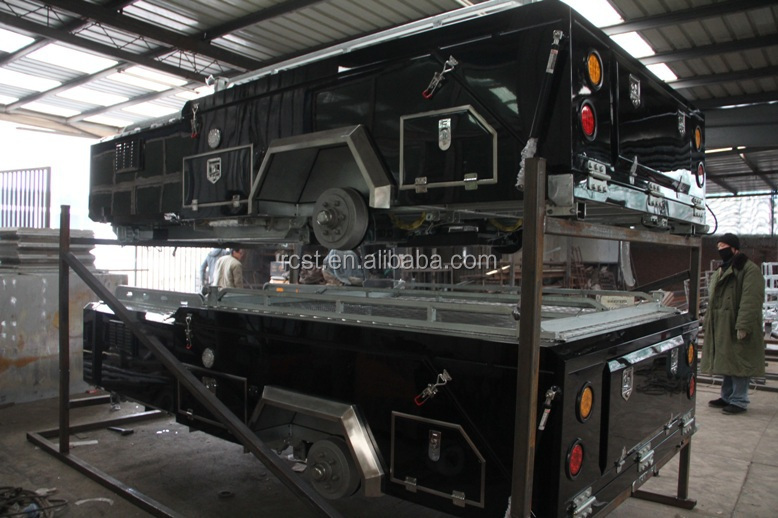

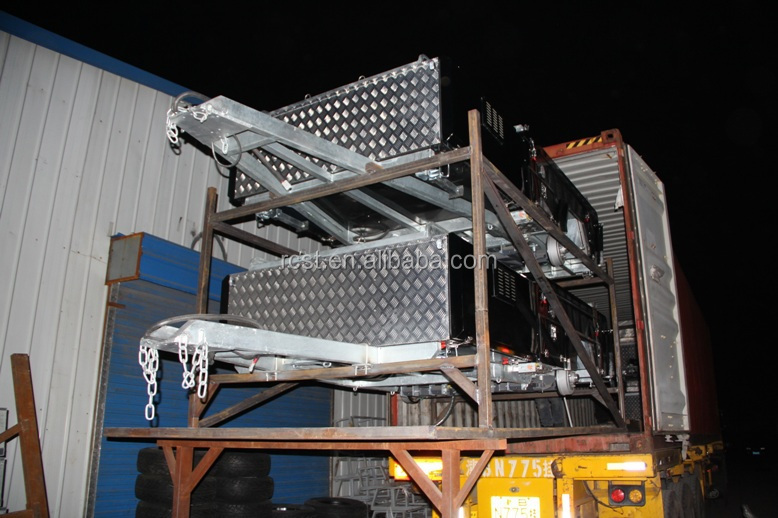

With drawbar welded, 1x40’HQ container load 8 sets trailers with tents

Without drawbar welded (i.e. drawbar to be bolted), 1x40’HQ container load 12 sets trailers with tents


Trailer surface finish: hammer tone finish

Optional at extra costs: Enamel Baked finish

Pre-galvanized steel, then powder coated, double protection against rusts

Fully powder coated chassis

Aluminum checker plate top cover on trailer box


Trailer size and weight

Overall dimension (mm): 4535X1750X1180(+100mm high luggage rack) (LXWXH)

The main body size:7*6Ft

Outer box size (mm): 2205X1750X637 (LXWXH)

Inner box size (mm): 2100X1680X450 (LXWXH)

Distance from trailer top to the ground: 1180mm

Ground clearance: 543mm

Trailer tare mass: 900kg


Trailer draw bar and chassis tube

Extended/reinforced drawbar of 3000mm long, drawbar tube size: 100X50X3mm tube (heavy duty), fully welded to chassis

Extra heavy duty off road chassis: 70x50x3mm tube

Draw bar & trailer frames welded onto chassis, then hot-dipped galvanized, best rust-resistance.



Trailer body construction and materials

Box panel walls: 1.5mm thick flat cold-pressed steel plate, then powder coated, with best rust resistance

Box walls & floor under tent bed: 1.5mm thick galvanized flat steel plate, further protected by marine carpet

Inside and outside of box top: aluminum checker plate: 1.5mm thick

Trailer box top is inserted with insulation board.


Trailer suspension and wheel

Independent coiled suspension with dual gas shock absorbers (All the blue bushes used for independent suspension are made of imported materials)

10” electric brakes with hand braking system

Off road all terrain wheels: 3x15” wheels, steel powder coated rims and 235/75R15 tires (DOT certified), 6-stud pattern, including 1x Spare wheel mounted under the chassis at trailer rear


Trailer details & accessories

ü  Safety chains: hot-dipped galvanized, comply with Australian standard, with Australian standard markings

ü  Hitch: Treg poly block hitch, loading capacity: 2000KG, unit weight: 10KG, complies with Australian standard, with Australian standard markings

ü  Jockey wheel: swing up type with 10” solid wheel

ü  Winch: PP webbing 8m used to close camper, loading capacity: 1000KG, heavy duty winch support

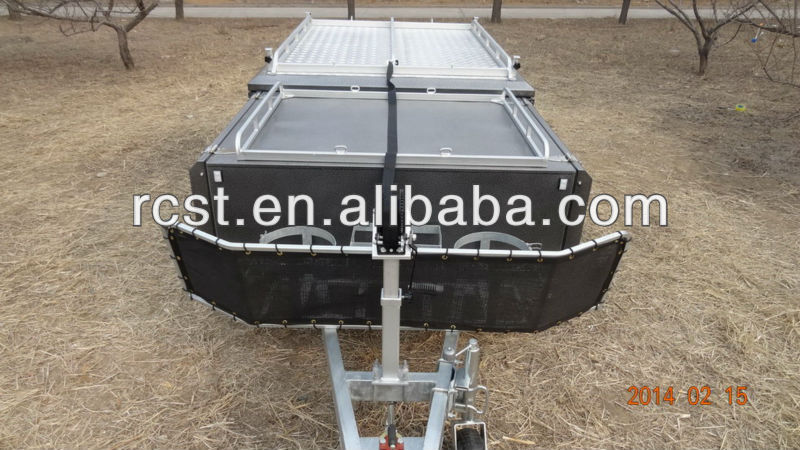

ü  Stone guard: hot-dipped galvanized stone guard with PVC mesh.

ü  Hot-dipped galvanized 2XGas bottle holders: Standard 9KG gas bottle holders

ü  Hot-dipped galvanized 2X20L Jerry can holders

ü  Large powder coated steel tool box, size: 1565X1180X550mm (LXWXH)

ü  Sliding out drawer for fridge in the left side of the large toolbox, maximum fridge size: 770*560*420 (LXWXH)

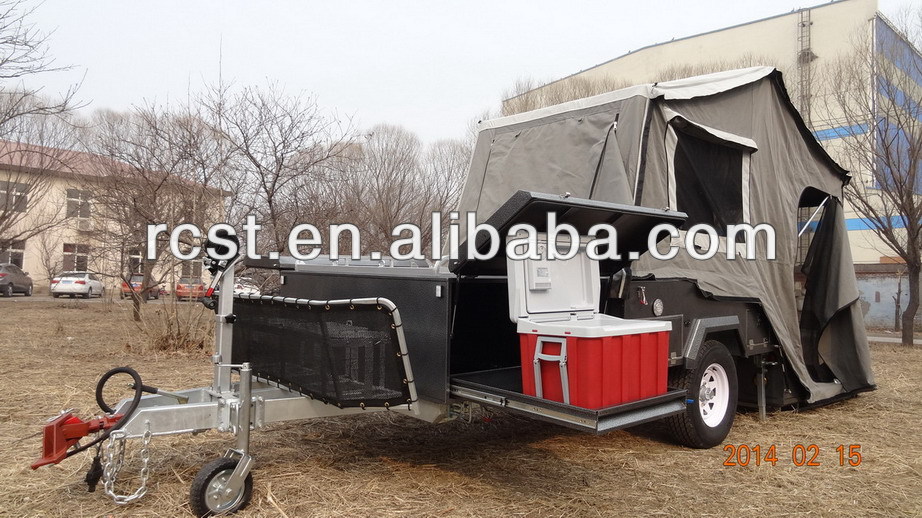

The fridge sample as shown by the attached pictures is: 40L, 560*380*420mm (L*W*H),

Double fridges of size 560*380*420mm (L*W*H) can be put in the sliding out drawer, as the sample fridge size is small. If the fridge size is big, only 1 fridge can be put in.

Fridge/s can be supplied at extra costs upon request.

Sliding out storage drawer in the left side of the large toolbox, size: 640X640X200mm (LXWXH)

Battery brackets, control panel are located at right side of the large tool box

Fridge & battery can be supplied at extra costs upon request.

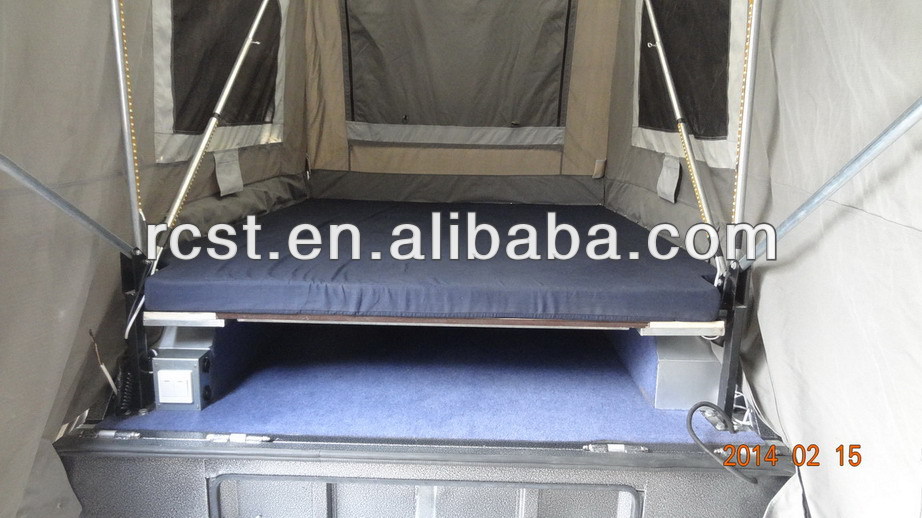

ü  Gas struts: gas struts for lifting up bed base to hold open; extra heavy duty gas struts for folding upper trailer box


ü  Locks and keys: all access doors are with stainless steel locks, water/dust proof seals for all doors

ü  Storage compartments with fully sealed & lockable doors on left side & right side of the rear part of trailer box, for easy storage of camping stuff

ü  4X wind down rear stabilizer legs & adjusting spanner

ü  Two enhanced luggage racks, hot-dipped galvanized; 1 on top of the large tool box, 1 on top of the trailer box



Trailer kitchenette

Water tank: 90L stainless steel water tank, size: 1000X520X180mm (LXWXH)

12V Electric water pump for water tank, aluminum checker plate cover for the pump.

High quality aluminum water filler inside the side storage.

Kitchen: kitchen top and stainless steel kitchen sink; 1Xdrawer in the kitchen, high quality lockable sliding rails, stainless steel lock


Trailer electric set-up

Wiring harness under trailer concealed in steel conduit

Wire cable: standard 7-core wire cable

4XLED tail Lights, 1Xnumber plate light, number plate holder



1X7-pin plug: flat or round plugs available for choice

Anderson plug & wiring

2XReflectors: white on front of the large tool box

2XTent inside bar lights and switch.

1XCooking lamp and Cooking lamp switch

3XCigar lighter outlets (1 beside the kitchen, 2 under tent bed)



Jerry cans, Gas stove/ burners can be supplied at extra cost

Gas bottles are not supplied



  1. All hinges, latches, fasteners that we use on the trailers are made of stainless steel
  2. The complete trailer is fully sealed, all doors and openings are fully sealed with rubber seals
  3. Trailers can be built as per customer’s special requirements



Tent: 14OZ tent with double roof.

(Please check the specification sheet of the tent RC-TH01 to see more details of the tent.)

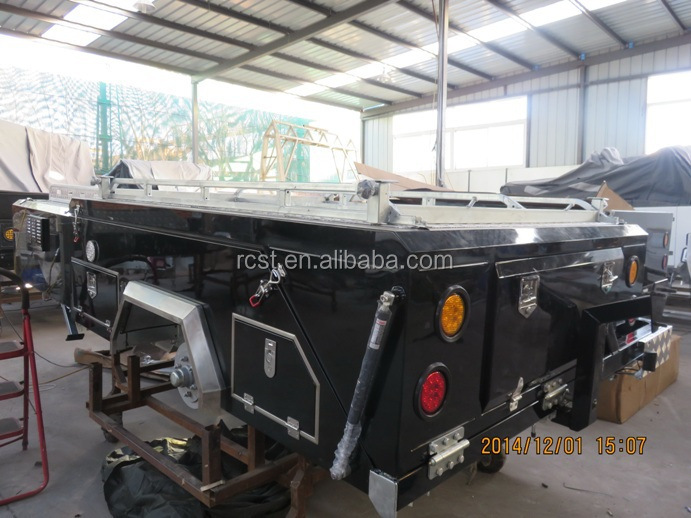

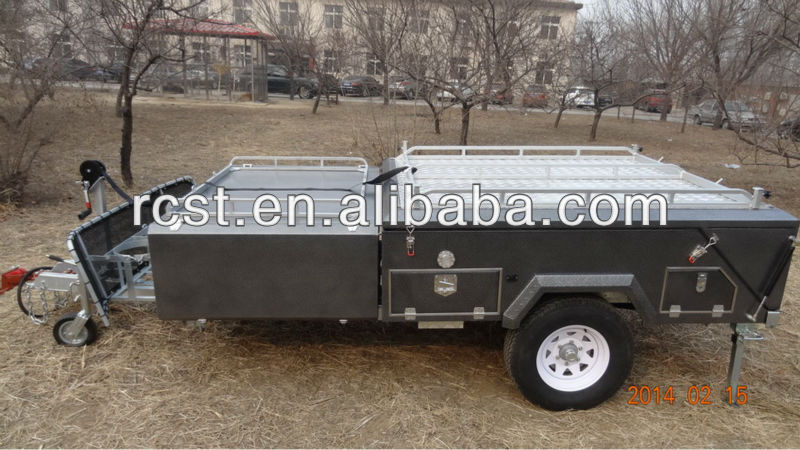

More pictures of the standard trailer:

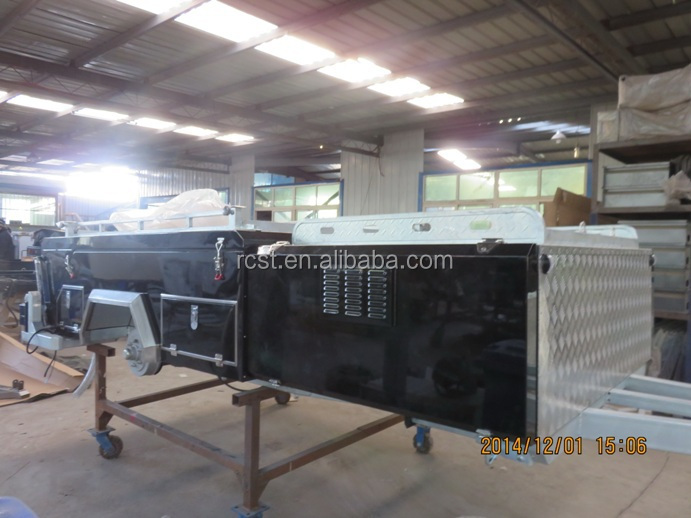

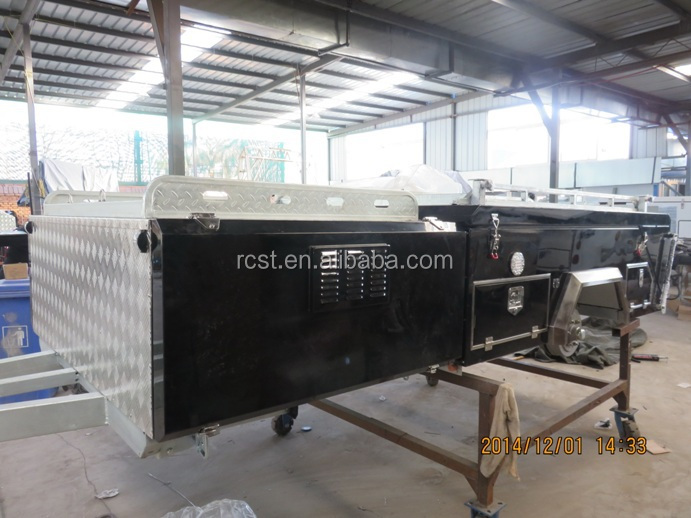

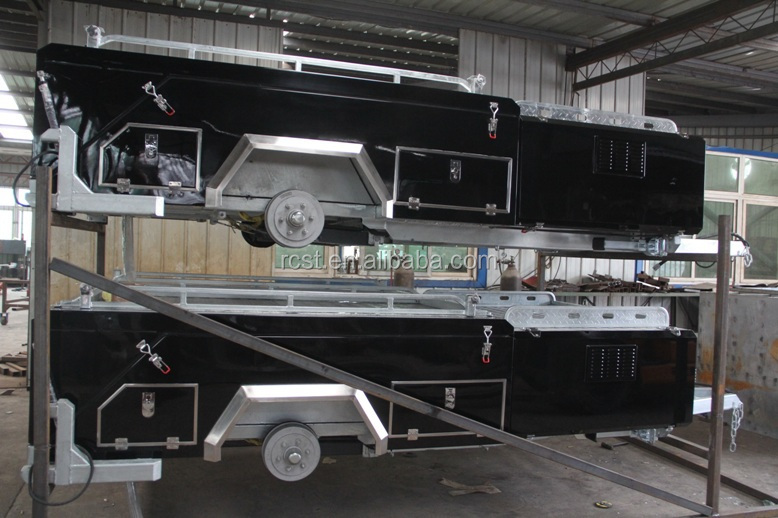

Customized trailer



1. Enamel baking finish: black color

2. Plywood floor in the living room

3. Aluminum checker plate cover for water tank.
