Front Folding Camper Trailer RC-CPT-01L

FOB Reference Price:Get Latest Price
6 Set/Sets (Min. Order)
Report Suspicious Activity
Quick Details
Travel Trailer
OEM No.:
Max Payload:
7x6ft, 7x6ft off road camper trailer
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Model Number:
aluminum cover
independent suspension
LED lights:
ADR or E-mark certified
powder coating
14oz cavans
Safety chain:
8mm dia, Australian standard
large type with fridge container
treg poly coupling
made upon your requests
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packed in carton boxes, or packed in bulk, or packed in iron pallets as per the nature and requirements of the customers.
China Port
Lead Time :
Within 50-60 days upon receipt of the deposit

Forward Folding Hard Floor Camper Trailer RC-CPT-01L

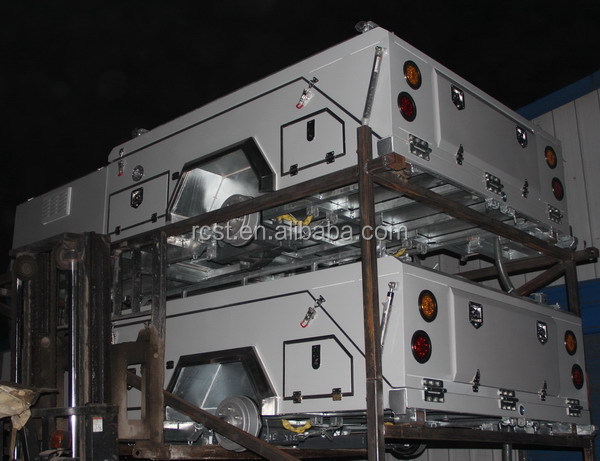

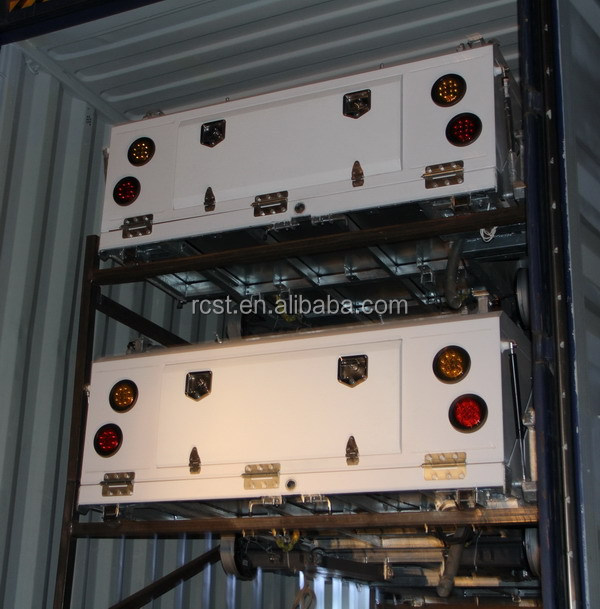

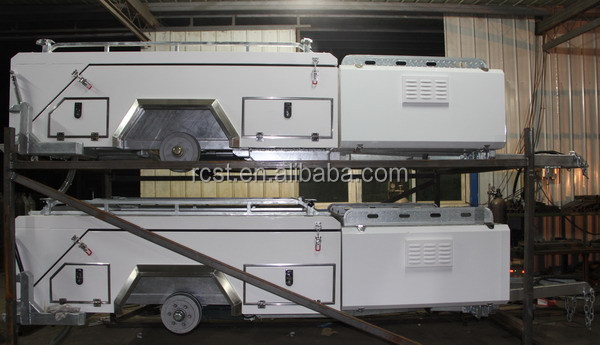

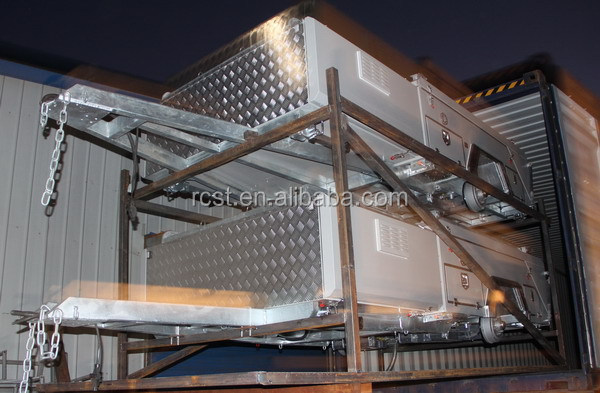

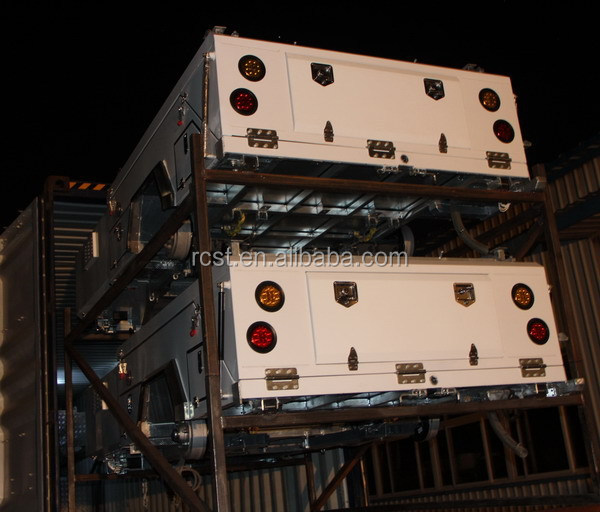

Shipping quantity of RC-CPT-01L

With drawbar welded, 1x40’HQ container load 6 sets trailers with tents;

Without drawbar welded (i.e. drawbar to be bolted), 1x40’HQ container load 10 sets trailers with tents



Trailer surface finish

Standard surface treatment: Powder coated with aluminum checker plate top cover

Optional at extra costs: Enamel Baking surface finish with aluminum checker plate top cover


Trailer size and weight

Overall size of trailer: 5250*1910*1315mm (L*W*H)

Trailer box outer size: 2100*1810*720mm (L*W*H)

Draw bar length: 3400mm

Trailer tare mass: 1100kg ATM: 1950kg


Trailer body construction and materials

Drawbar tube size: 100mmx50mmx3mm

Chassis tube size: 70mmx50mmx3mm


Trailer suspension and wheel

Suspension: Heavy duty independent suspension with dual shock absorbers.

10 inch electric drum brakes + handbrake system.

Off road all terrain wheels:

Standard: 3 brand new 235/75R15 tires (DOT certified) + 3 powder coated steel rims (off them, 1 spare wheel mounted at trailer rear)

Optional at extra costs: Wheels with alloy rims as shown by the pictures.


Trailer details & accessories

ü  Safety chains: comply with Australian standard, with Australian standard markings

ü  Coupling: 360 degree Treg poly block coupling, capacity: 2000kg, complies with Australian

standard, with Australian standard markings

ü  Front winch: 1 self locking hand winch in the front, capacity of winch: 725kg

ü  Jockey Wheel - swing up type with 10” heavy duty solid wheel.

ü  2 x 4.5kg galvanized gas bottle holders and 2 x 20L galvanized jerry can holders.

Large full trailer width PVC mesh stone guard welded to holder brackets assembly


ü  Large steel powder coated tool box, size: 1670*1185*550mm.

ü  Front and top of the tool box are covered by aluminum checker plate.

ü  Galvanized luggage rack on top of the large toolbox.

ü  2*clearance lights at the front side (left & right) of the toolbox.


ü  Sliding out drawer for fridge, and sliding out storage drawer in the left hand side of the large toolbox. Fridge storage dimension: 790*580*430mm (L*W*H).

Maximum fridge dimension: 770*560*420 (L*W*H).

The fridge sample as shown by the attached 2 pictures is: 40L, 560*380*420mm (L*W*H),

Double fridges of size 560*380*420mm (L*W*H) can be put in the sliding out drawer, as the sample fridge size is small. If the fridge size is big, only 1 fridge can be put in.

Fridge/s can be supplied at extra costs upon request.

ü  Battery and switch panel area inside the right hand side of the toolbox.

Plus one large sliding out drawer in the left hand side of the toolbox.

ü  Improved foldable steel checker plate footstep at the left hand side of the trailer.

ü  2*storage rooms in the right hand side of the trailer.

The water filler is fitted inside the rear storage room. The front storage room is decorated with plywood board and lined with carpet.

ü  With 2 rear stabilizing legs and 2 front stabilizing legs plus stabilizer tool

ü  Gas struts’ rating: 200kg

ü  With 4 round ADR approved LED tail lights (2 red and 2 orange)

ü  Number plate light and number plate Holder.

ü  Rear winch: 1 self locking hand winch, capacity of winch: 725kg

ü  Australia standard 7 pin plug, Anderson plug and standard 7-core wiring system.


Trailer kitchenette

ü  Sliding out kitchen at the left hand side of the trailer, one outside sealing door to prevent water or dust coming inside the kitchen or trailer.

Luxury type with stainless steel sink and stainless steel tap.

One cigar lighter beside the kitchen.

Kitchen is stronger than competitors’ kitchen, a man can sit on the kitchen without any problem.

Gas cooker to be supplied at extra costs upon request.

ü  100L stainless steel water tank, size: 1000*600*180mm; 12V electric pump system.

Both water tank and water pump are cover with Aluminum checker plate for better protection.

ü  High quality aluminum water filler is fitted inside the side storage area.

ü  All doors are fully sealed.


Inside the trailer


ü  Living Room

Living room is fully covered with plywood board, including plywood walls, plywood floor, plywood cabinets, foldable plywood table.

2*cigar lighters inside the living room (3 in total, the other one is beside the kitchen.)

Foldable table and sofa inside the living room which could be converted to bed for sleeping.


ü  Bed Room

Large King Size foam mattress inside the bed room.

Trailer top panel under the mattress is inserted with insulation board.



Tent: 14OZ tent with double roof.

(Please check the specification sheet of the tent RC-TQ01 to see more details of the tent.)



  1. All hinges, latches, fasteners that we use on the trailers are made of stainless steel.
  2. The complete trailer is fully sealed, all doors and openings are fully sealed with rubber seals.
  3. Trailers can be built as per customer’s special requirements
