hard floor rear folding camper RC-CPT-04L
1. 7x6ft x 600mm deep
2. Powder coated or enamel backed
3. large fridge toolbox
Heavy Duty Hard Floor Rear Folding Camper RC-CPT-04L
Shipping quantity of RC-CPT-04L

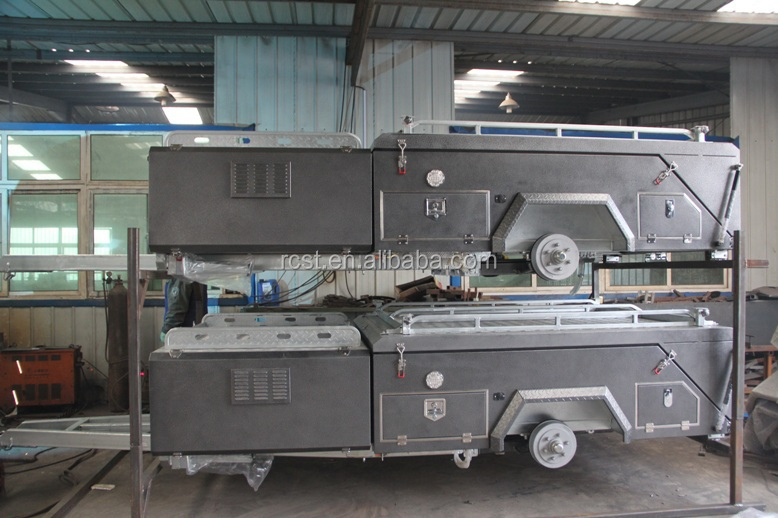

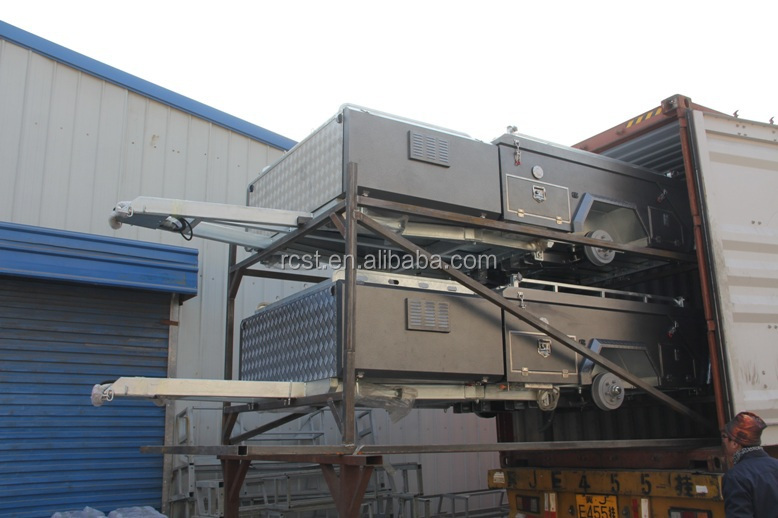

With drawbar welded, 1x40’HQ container load 6 sets trailers with tents

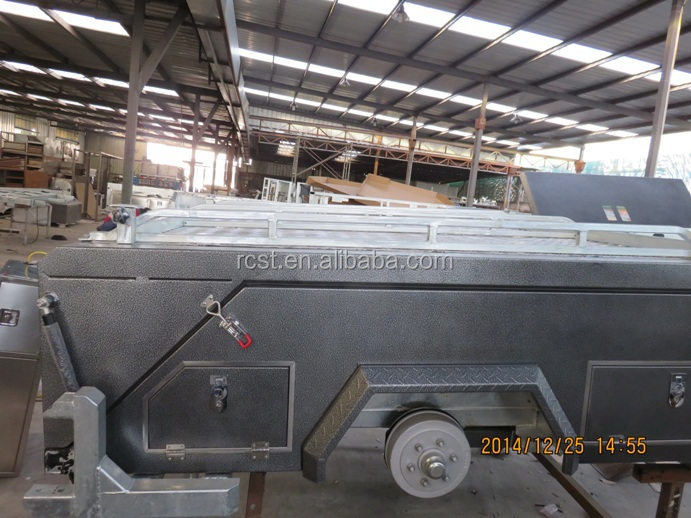

Trailer surface finish: hammer tone finish
Optional at extra costs: Enamel Baked finish
Pre-galvanized steel, then powder coated, double protection against rusts
Fully powder coated chassis
Aluminum checker plate top cover on trailer box
Trailer size and weight
Overall dimension (mm): 4535X1750X1180(+100mm high luggage rack) (LXWXH)
The main body size:7*6Ft
Outer box size (mm): 2205X1750X637 (LXWXH)
Inner box size (mm): 2100X1680X450 (LXWXH)
Distance from trailer top to the ground: 1180mm
Ground clearance: 543mm
Trailer tare mass: 900kg
Trailer draw bar and chassis tube
Extended/reinforced drawbar of 3000mm long, drawbar tube size: 100X50X3mm tube (heavy duty), fully welded to chassis
Extra heavy duty off road chassis: 70x50x3mm tube
Draw bar & trailer frames welded onto chassis, then hot-dipped galvanized, best rust-resistance.
Trailer body construction and materials
Box panel walls: 1.5mm thick flat cold-pressed steel plate, then powder coated, with best rust resistance
Box walls & floor under tent bed: 1.5mm thick galvanized flat steel plate, further protected by marine carpet
Inside and outside of box top: aluminum checker plate: 1.5mm thick
Trailer box top is inserted with insulation board.
Trailer suspension and wheel

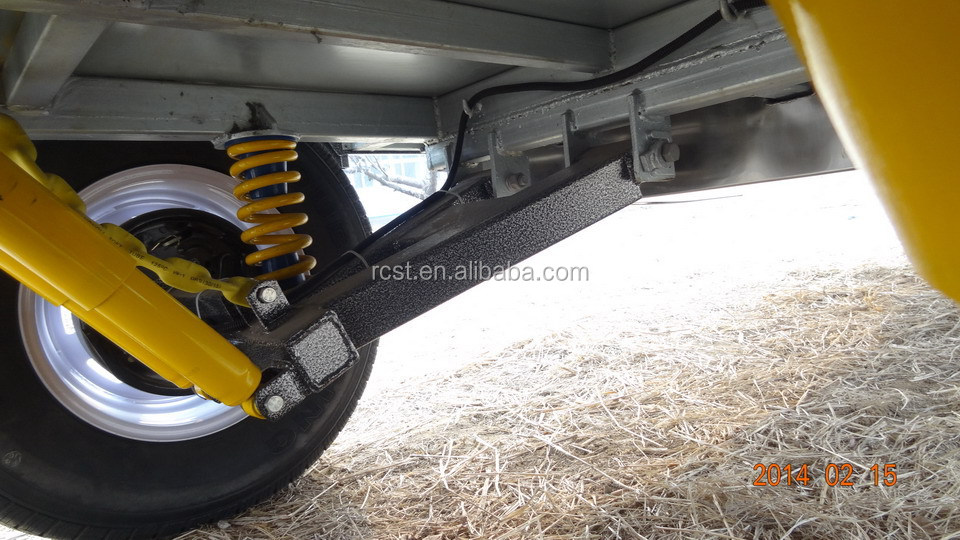

Independent coiled suspension with dual gas shock absorbers (All the blue bushes used for independent suspension are made of imported materials)
10” electric brakes with hand braking system
Off road all terrain wheels: 3x15” wheels, steel powder coated rims and 235/75R15 tires (DOT certified), 6-stud pattern, including 1x Spare wheel mounted under the chassis at trailer rear
Trailer details & accessories
ü Safety chains: hot-dipped galvanized, comply with Australian standard, with Australian standard markings
ü Hitch: Treg poly block hitch, loading capacity: 2000KG, unit weight: 10KG, complies with Australian standard, with Australian standard markings
ü Jockey wheel: swing up type with 10” solid wheel
ü Winch: PP webbing 8m used to close camper, loading capacity: 1000KG, heavy duty winch support
ü Stone guard: hot-dipped galvanized stone guard with PVC mesh.
ü Hot-dipped galvanized 2XGas bottle holders: Standard 9KG gas bottle holders
ü Hot-dipped galvanized 2X20L Jerry can holders

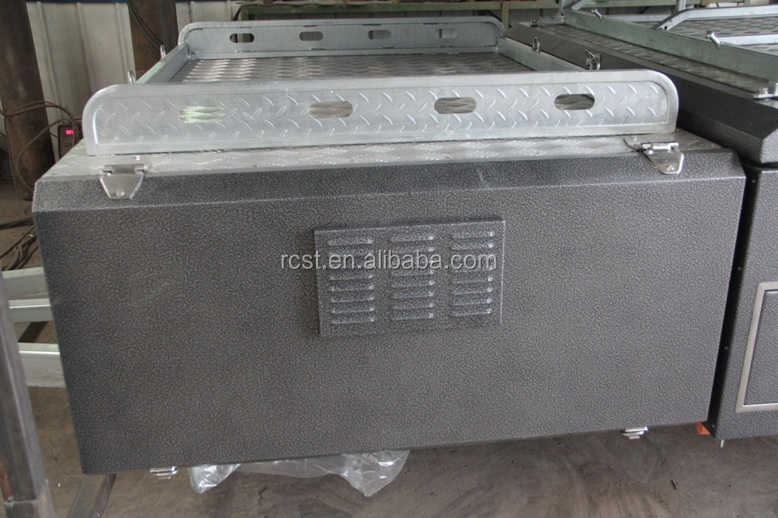

ü Large powder coated steel tool box, size: 1565X1180X550mm (LXWXH)

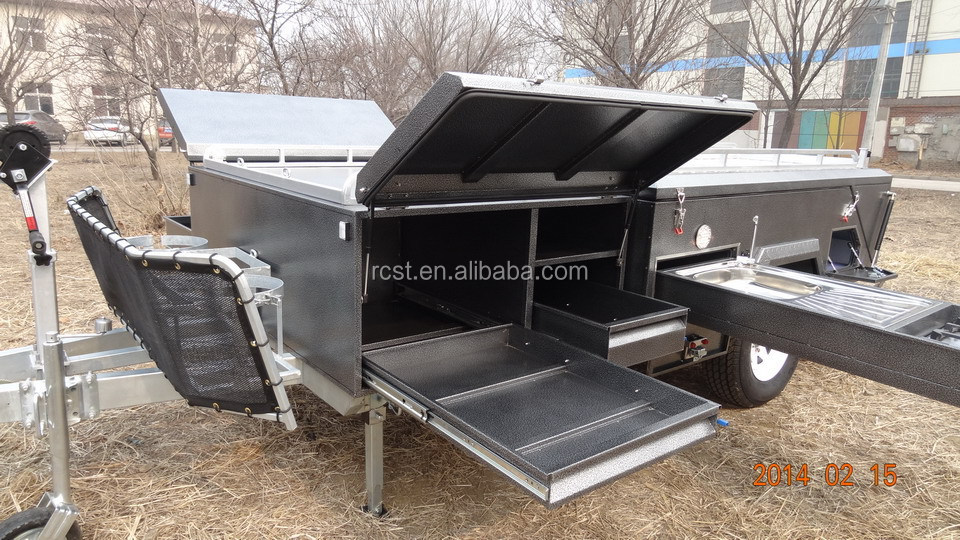

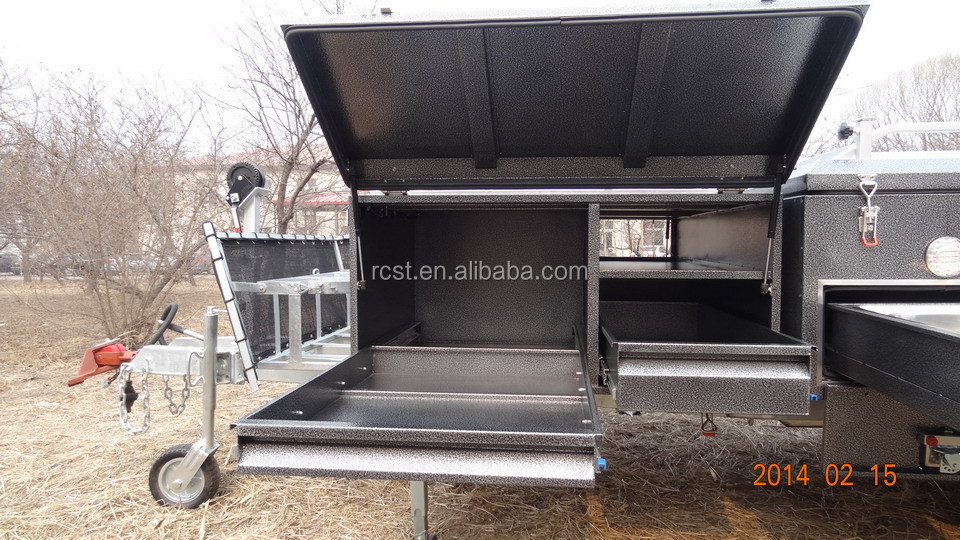

ü Sliding out drawer for fridge in the left side of the large toolbox, maximum fridge size: 770*560*420 (LXWXH)
The fridge sample as shown by the attached pictures is: 40L, 560*380*420mm (L*W*H),
Double fridges of size 560*380*420mm (L*W*H) can be put in the sliding out drawer, as the sample fridge size is small. If the fridge size is big, only 1 fridge can be put in.
Fridge/s can be supplied at extra costs upon request.
Sliding out storage drawer in the left side of the large toolbox, size: 640X640X200mm (LXWXH)
Battery brackets, control panel are located at right side of the large tool box
Fridge & battery can be supplied at extra costs upon request.
ü Gas struts: gas struts for lifting up bed base to hold open; extra heavy duty gas struts for folding upper trailer box
ü Locks and keys: all access doors are with stainless steel locks, water/dust proof seals for all doors
ü Storage compartments with fully sealed & lockable doors on left side & right side of the rear part of trailer box, for easy storage of camping stuff
ü 4X wind down rear stabilizer legs & adjusting spanner

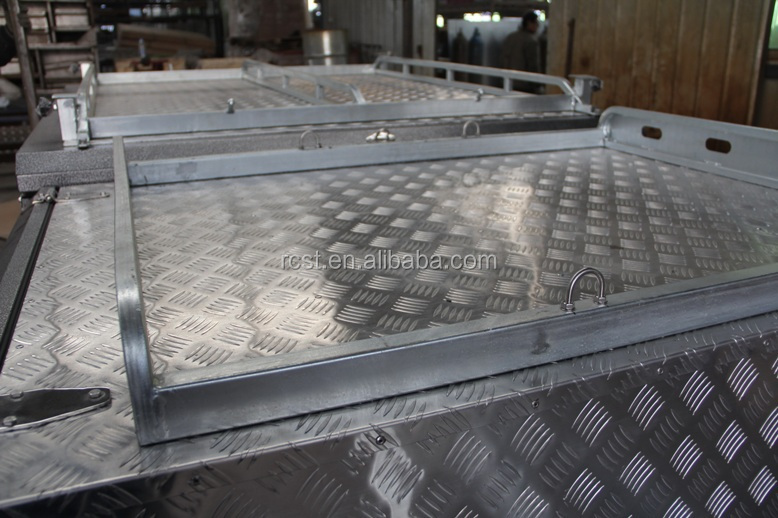

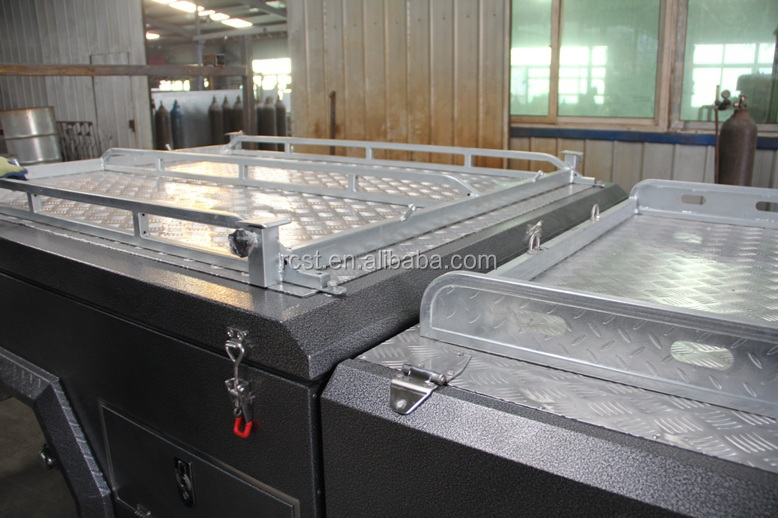

ü Two enhanced luggage racks, hot-dipped galvanized; 1 on top of the large tool box, 1 on top of the trailer box
Water tank: 90L stainless steel water tank, size: 1000X520X180mm (LXWXH)
12V Electric water pump for water tank, aluminum checker plate cover for the pump.
High quality aluminum water filler inside the side storage.

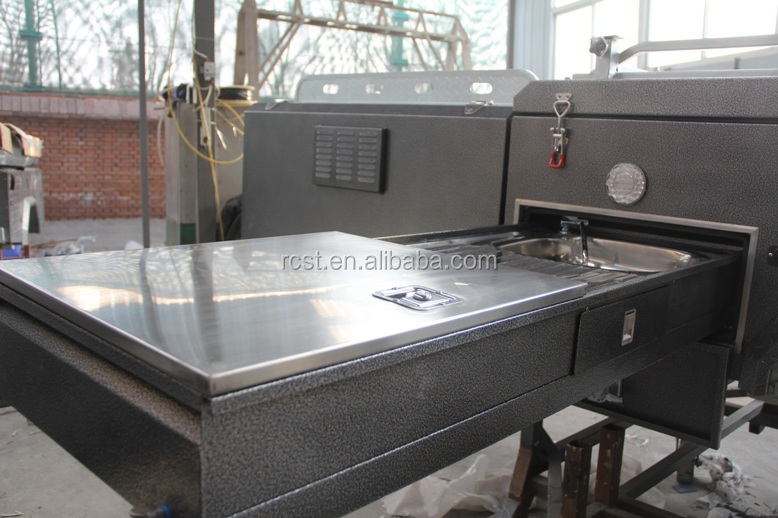

Kitchen: kitchen top and stainless steel kitchen sink; 1Xdrawer in the kitchen, high quality lockable sliding rails, stainless steel lock
Trailer electric set-up
Wiring harness under trailer concealed in steel conduit
Wire cable: standard 7-core wire cable

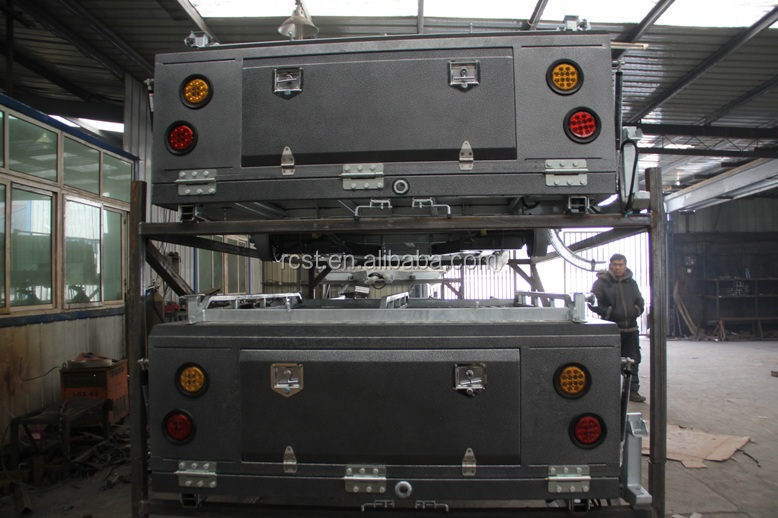

4XLED tail Lights, 1Xnumber plate light, number plate holder
1X7-pin plug: flat or round plugs available for choice
Anderson plug & wiring
2XReflectors: white on front of the large tool box
2XTent inside bar lights and switch.
1XCooking lamp and Cooking lamp switch
3XCigar lighter outlets (1 beside the kitchen, 2 under tent bed)
Jerry cans, Gas stove/ burners can be supplied at extra cost
Gas bottles are not supplied
Tent: 14OZ tent with double roof
(Please check the specification sheet of the tent RC-TH01 to see more details of the tent.)

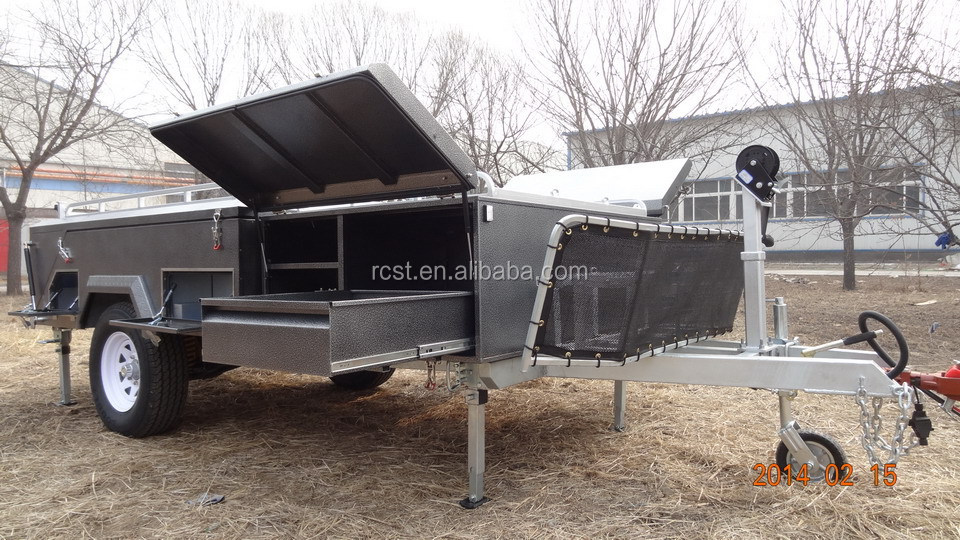

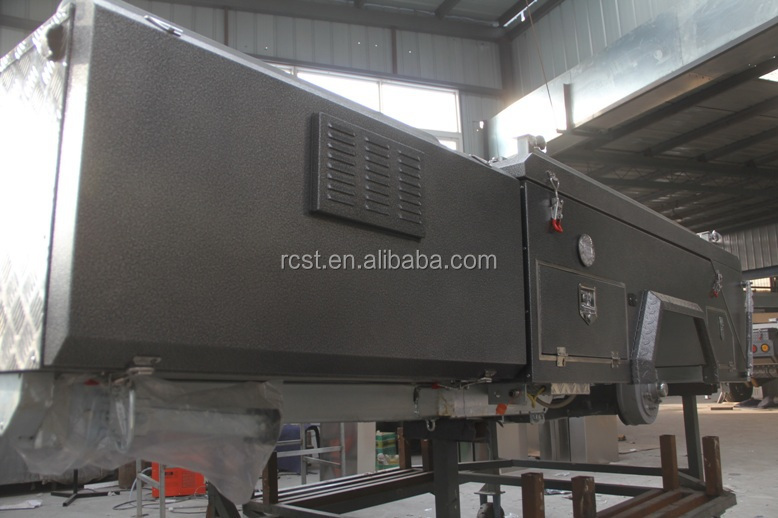

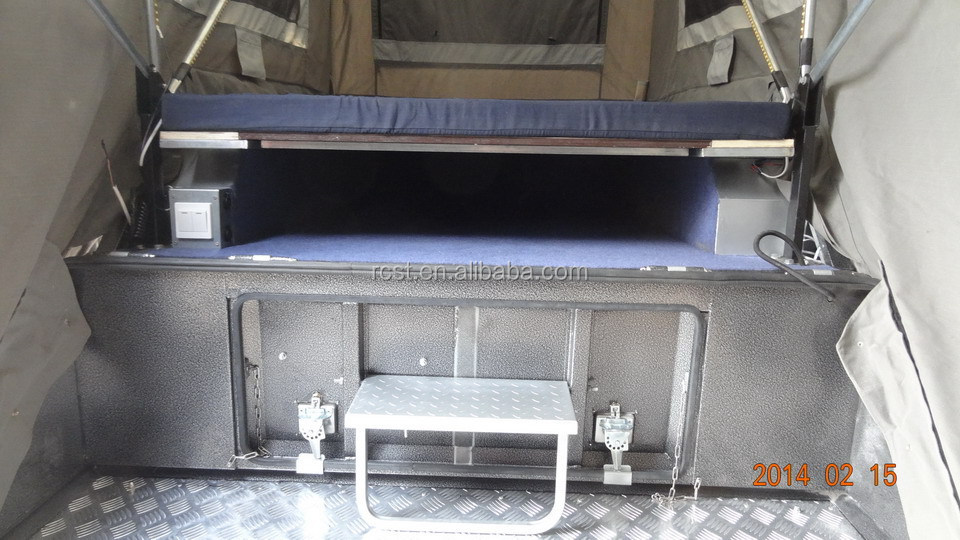

More pictures of the trailers please check below.
