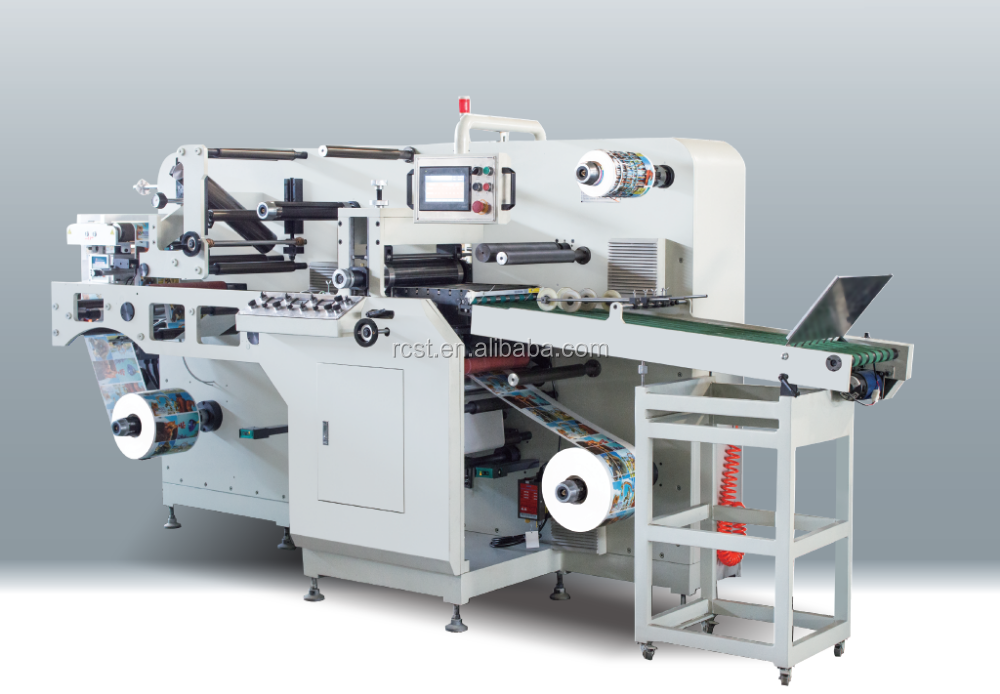

High-speed intermittent and full-rotary die-cutting machine

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Paper Cutting Machine
Automatic Grade:
Automatic
Place of Origin:
Hebei, China (Mainland)
Brand Name:
WanJie
Model Number:
WJJM350
Voltage:
380V
Power(W):
10 kw
Weight:
3200kg, 2000kg
Certification:
CE and ISO 9001
Warranty:
12 Months
Max. paper width:
350mm
Max. die-cutting size:
350mm*340mm (L*W)
Max Die-cutting Speed:
300 times/min
Max. unwinding diameter:
700mm
Max. rewinding diameter:
700mm
Power supply:
380V 50HZ
Teeth of Magnetic roller:
133 teeth Ratio 1/8
Overall dimension:
2870*1400*1500mm
Optional:
UV varnishing, slitting, cold stamping...
SupplyAbility
SupplyAbility:
8 Set/Sets per Month
Packaging & Delivery
Packaging Details
1. In standard wooden cases.
2.As the customers' reasonable requires.
Port
Xingang
Lead Time :
25-35 days after receiving the deposit

High-speed intermittent and full-rotary die-cutting machine



Product Description



Product Description

  1,The die-cutting part adopts intermittent feeding mode, using a fixed-diameter magnetic roller. The die-cutting to various size and design of the products is realized by changing the steel die.
2,The rotary die-cutting mode ensures a stable die-cutting pressure and easy adjustment
3,Magnetic clutch and brake makes a good control on rewinder and unwinder, which ensures the constant tension while the material is running.
4,4 servo motors ensure the high precision of die-cutting and speed.
5,Touch screen makes the operation easily. Remote diagnose and repair can be achieved as well.
6,According to the client's requirement, it can be equipped with inkjet, laminating, cold foil stamping and slitting functions.

Intermittent Max die-cutting speed300cycle/min(60m/min)
Full rotary Max die-cutting speed110Meters/min
Non-adhesive die-cutting precision±0.15mm
IML die-cutting precision±0.25mm
Max die-cutting area350mm×340mm (L×W)
Unwinding width100-350mm
Max unwinding diameterø700mm(≈2000meters)
Max rewinding diameterø700mm(≈2000meters)
Magnetice roller120Teeth 1/8"CP (Standard)
Repeat die-cutting length50mm~350mm
Main motor10kW
dimension2900mm×1200mm×1500mm
weight3200KGS
