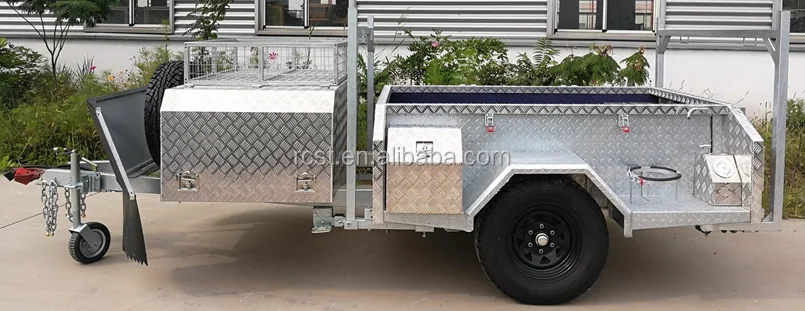

Galvanized Side Folding Camper Trailer RC-CPT-07SD (Super Deluxe)
Trailer surface finish
Fully hot-dipped galvanized 7x4ft camper trailer (the best anti-rust finish compared with powder coated or painted finish)
Trailer size and weight
Box deep: 500mm
Box top from ground: 1100mm approximately
Tare mass: 902kg
Trailer body construction and materials
Fully hot galvanized steel checker plate trailer box as well as side steps and mudguards, steel thickness: 2.5mm
Box front panel and tail gate are made of 2.5mm aluminum checker plates, more beautiful
Full 70x50x2.5mm RHS chassis and cross beams
100x50x3mm draw bar with reinforcement bar welded underneath for the toughest ride
Extended draw bar for easy corner turning
Full size side steps and large mudguard
Trailer suspension and wheel
Offroad heavy duty independent suspension with dual shock absorber
10" electric brake + hand brake
Off road all terrain wheels: 3x15” wheels, black powder coated rims and 235/75R15 tires (DOT certified), 6-stud pattern,
including 1x Spare wheel on the drawbar.
Trailer details & accessories
1. Safety chains: hot dip galvanized, comply with Australian standard, with Australian standard markings
2. 360 degree Treg poly block coupling, capacity: 2000kg, complies with Australian standard
3. Jockey Wheel - swing up type with 10” solid wheel
4. Large armor paint stone guard, with 2 strong mud flaps under the stone guard
5. Checker plate Aluminum Toolbox 1900X930X600mm; with fridge drawer which is large enough for 95L fridge;
Rear compartment: bottom space for storing tent poles, top space for more storage
6. Hot-dipped galvanized luggage basket on top of the large toolbox for carrying luggage or carrying log for BBQ.

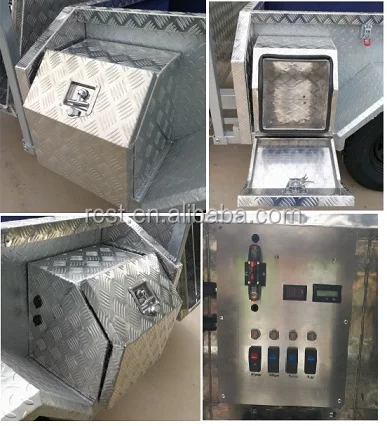

7. One small tool box on each side of trailer box: left one is for storage, right one is for power panel
8. 2 Jerry can holders, 1 gas bottle holder on the sides of the trailer.

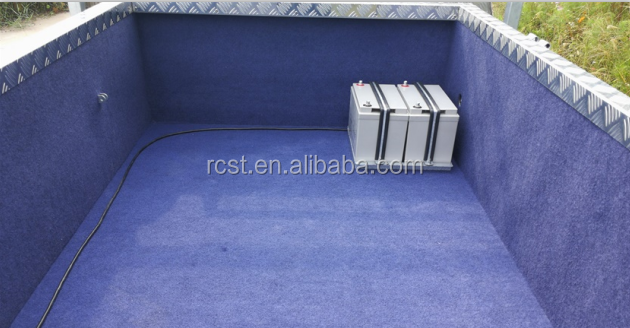

9. 2 units of 100A batteries in the front of trailer box
10. Gas struts for easy lifting up the tent.
11. Wind 4x down rear stabilizer legs + raising/lowering tool (2 front ones, 2 rear ones)
12. Number Plate Holder
13. Rear receiver for bike carrying rack
14. Weather proof Tent Mounting Hardware (Hinges, hooks and Latches)
15. Carpet applied in the trailer box.
16. Strong boat rack, also with 4 tie down rings on the boat rack
100L stainless steel water tank with electric pump and aluminum checker plate cover, also with 2 clapboards inside

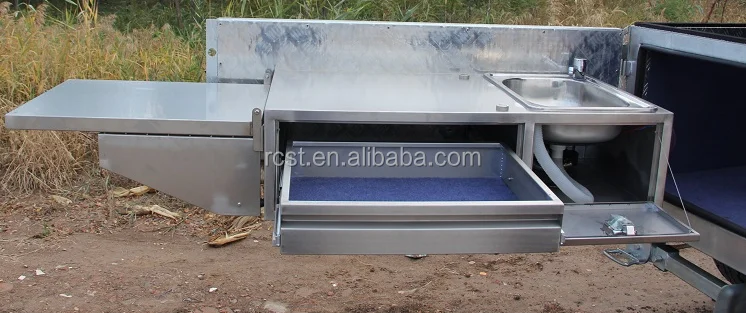

Full stainless steel kitchen, stainless steel sink (14cm deep) with drainer and hose.
With one stainless steel drawer
Comes with high quality water tap
Trailer electric set-up
LED tail Lights and number plate lights
7-pin plug: flat or round plugs available for choice
Wire cable: standard 6-core wire cable
Trailers can be built as per customer’s special requirements
1. Sloping wall tent as per spec. of RC-T6003 with single annex, with 14OZ canvas RIP-STOP, with kids room.
More annexes can be added at extra costs.
Reference photo (Slope wall main tent + single annex + kids room):
2. Straight wall tent as per spec. of RC-T6003ZA with single annex, with 14OZ canvas RIP-STOP.
Jerry cans, Gas stove/ burners and Gas bottles are not supplied.
Wheels can be with alloy rims at extra cost
